Novi H850-RTK posebno je dizajniran imajući na umu inspekcije, mjerenje, aplikacije javne sigurnosti i spašavanje jelena.

Naš dizajn heksakoptera nudi više sigurnosti, snage, učinkovitosti, stabilnosti i kapaciteta za nošenje težih tereta.

Ovisno o nosivosti i vremenskim uvjetima, moguća su vremena leta do 65 minuta. Sva nosivost H520E kompatibilna je s H850-RTK. To vam olakšava korištenje naših nosivosti na dvije različite platforme: H520E i H850.

Uz performanse i fleksibilnost nosivosti, veliki naglasak stavljen je na sigurnost leta i podataka H850 prilikom njegovog razvoja. Podaci o letu pripadaju vama i nikome drugome.

H850 opremljen je dvostrukim IMU-om, kompasom, barometrom, dvostrukom RTK antenom i dvije pametne baterije. Čak i sa samo pet pokrenutih motora, možete sigurno spustiti H850. Jednim klikom možete instalirati Drone-Tag uređaj s certifikatom YCAP za daljinski ID, koji će postati obavezan u Europi 2023. godine.

PREUZIMANJE BROŠURE

SPECIFIKACIJE

• Weight: 5800 gram, inclusive 2 flight batteries (w/o payload)
• MTOW: 8800g
• Max Payload Weight: 3000g
• Diagonal Size: 850mm
• Unfolded: 440×365×470 mm
• Max Ascend Speed: 3 m/s
• Max Descent Speed: 2-5 m/s
• Max Horizontal Speed: 20 m/s
• Max Flight Speed: 72 km/h
• Max. Flight Ceiling (MSL): 5000m
• Max Flight Time: 65 minutes (without payload)
• Battery 23,1volt: 2x Li-ion HV, 6S,12800mAh
• Position System: GPS, Glonass, Beidou&Galileo
• Hovering Accuracy(Single):
• Horizon:±0.5m
• Vertical:±0.5m
• RTK(RMS) Accuracy: 1cm +1ppm(H); 1.5cm+1ppm(V)
• Operating Temperature:
• -20℃-50℃
• -4° F -122° F
• Payload Connector: X-connector
• Compatible Payloads : E20TVx, E90X, E30Zx, ETx, S42x, lidar, Spotlight Upward Gimbal: Optional
• Hot-swappable Batteries & Payloads: Yes
• IP: x5
• Collision Avoidance System: Millimeter-wave Radar (optional)
• Remote Controller: T-One
• Connectivity Ports and Power Supply H850:
• GMAC 1000Mb, USB-C, USB-
• 5v+GND, 2x PWM,2x GPIO, 5v,12v&19,8
• power requirements.
• Operating Frequency: 2.4000-2.4835GHz & 5.725-
• Autopilot: PX4 Based
• Drone Remote Identification Device (EU): LTE+Bluetooth, incl. app and U

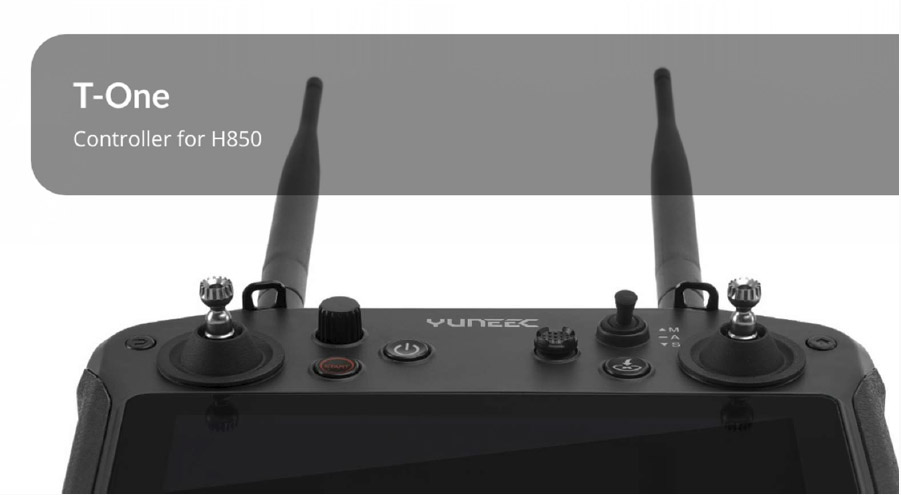

• 7-inch touch screen
• 1920x1200 screen resolution
• 1000 nit luminance
• 15 km range Fcc
• 8 km range Ce
• 8 hours of operation time
• 10.000 mAh/7.4-volt battery
• 40 Mbps dual-band
• Dynamic Frequency hopping
• IP x4
• Cortex A72&A53 high-performance processor
• Android 10
• 32Gb ROM / 4 Gb RAM
• HDMI
• USB-C, USB-3 & USB-2
• Micro SD
• 1.2 kg only
• No data sharing

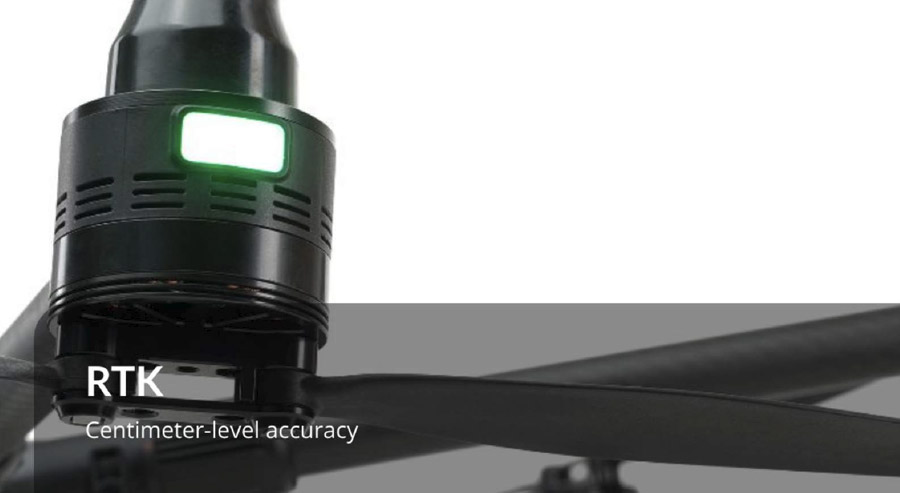

• RTK (Real-Time Kinematic) module for high accuracy relative positioning: 1cm +1ppm(H); 1.5cm+1ppm(V)
• Dual RTK-antenna for high precision positioning. The dual antennas on the H850-RTK ensure that one antenna is always transmitting in the event that one becomes disabled
• Keep cm precision in even GNSS challenging environment
• Built for faster and more precise mapping (e.g. complex surveying,
• inspections, mapping, 3D displays)
• 5 Hz update rate of position, velocity and time
• All data including raw GNSS data and real-time solutions can be logged on board - ready for PPK (Post Processed Kinematics)
• Support signals of up to four GNSS constellations among GPS, GLONASS, Galileo and BeiDou
• Compatible with all existing Yuneec H520E camera payloads

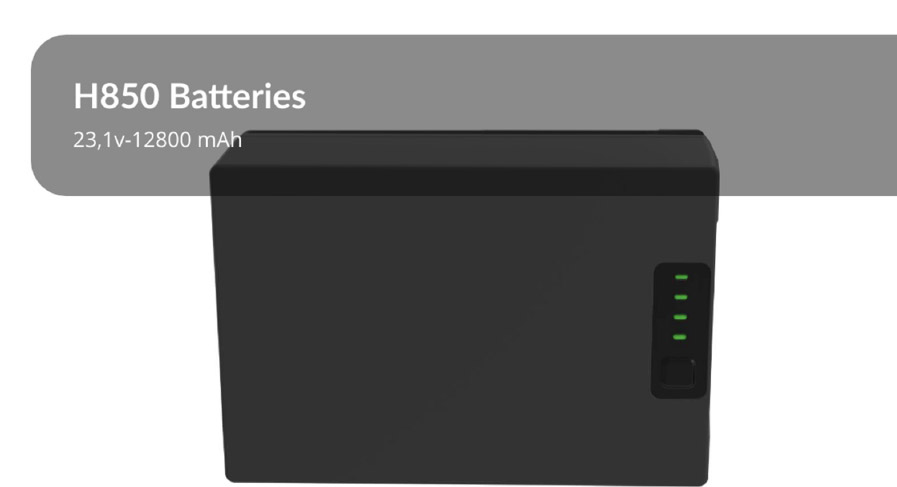

• Size: 98×58×149mm
• Battery Capacity: 12.800mAh
• Battery Wattage: 295.68Wh
• Standard Voltage: 23.1v (3.85v/cell)
• Charging Voltage: 26.4v
• Battery Type: Li-ion
• Fast Charge: 1C (10 Amp）
• Charging Time: 1,5 hours
• Max Continuous Discharge Current: 64A
• Maximum Discharge Current: 128A
• Weight: 1390 gram
• Operating Temperature: 0℃+45℃

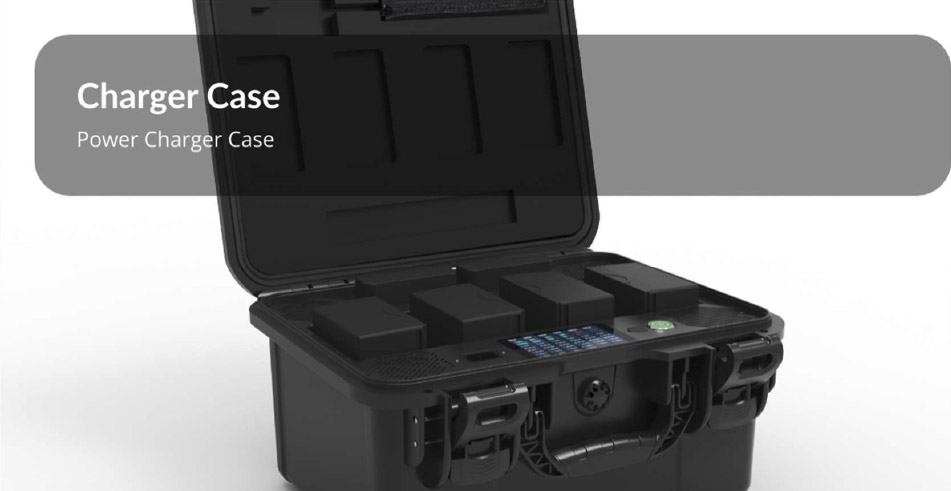

Uz H850 Power Charging Case, možete puniti četiri H850 baterije i dvije T-one baterije istovremeno!
Zahvaljujući dizajnu tvrdog kućišta možete sigurno skladištiti i transportirati baterije.
Kompaktan dizajn omogućuje jednostavno nošenje kućišta za punjenje.

SPECIFIKACIJE

•3.5” Color LCD Display
•1140 watt (200v-250v)
•220/110 volt
•Transport case
•Easy to operate
•Buzzer alarm
•Compact (370×270×220mm)
•Foam cover battery protection
