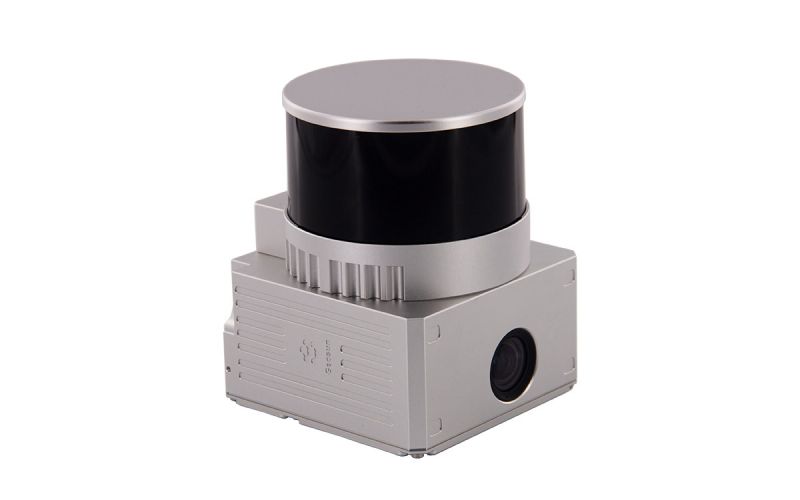

Geosun UAV LiDAR Scanning System GS-130X
General | Dimensions | 14.2X10.9X12cm |
Weight | 1.26kg | |
Supported Platform | UAV/Vehicle | |
System Performance | Detection Range (Reflectivity) | 120m@20% |
System Accuracy | 4cm@80m | |
Laser Unit | Ranging Accuracy | ± 1cm |
Maxi Returns Supported | 2 | |
FOV (Horizontal/ Vertical) | 360°x31° | |
Laser Safty | 905nm Class 1 | |
Point Rate/sec | 640.000 | |
Beams | 32 | |
POS Unit | GNSS Signal Type | GPS/GLONASS/ BDS/GAL |
IMU Updated Frequency | 200HZ | |
Pitch/Roll Accuracy | 0.015° | |
Yaw Accuracy | 0.040° | |
RGB Mapping Camera | FOV | 83° |
Effective Pixel | 26MP | |
Focal Length | 16mm | |
Data Storage | 64 GB Max Support 128GB TF Card |
