CORS sustav

Značajke:

Jednostavno pouzdana referentna stanica s vrhunskom cijenom

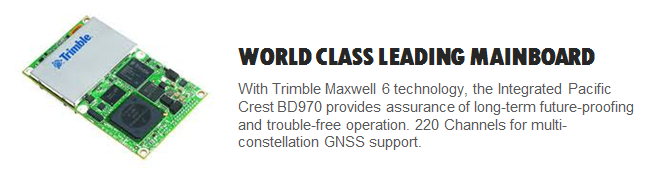

  • 220 kanala, Pacific Crest GNSS matična ploča, podržavaju GPS / GLONASS / Galileo / BeiDou
  • Precizno pozicioniranje RTK mreže
  • Softver za jednu baznu stanicu je besplatan
  • Podrška svim markama GNSS prijemnika
  • Visoka sigurnost za tok podataka i uslugu
  • Nema ograničenja za količinu korisnika, pouzdanost i kontinuiranu uslugu
  • Može se nadograditi na CORS mrežu

KOLIDA S8 + osigurava RTK GNSS preciznu točnost (CM točnost) podataka za različite primjene kao što su ankete, nadzor, kontrola izgradnje, upravljanje imovinom, katastar, navigacija itd. Rješenje uključuje: KOLIDA S8 + stanicu, GNSS prigušnu prstenastu antenu, Eagle Server softver.

PREUZIMANJE BROŠURE

Tehničke specifikacije

Satellite Signal Tracked Simultaneously
L1C/A,L1C,L2C, L2E, L5
GLONASSL1C/A, L1P, L2C/A, L2P, L3
SBASWAAS, EGNOS, MSAS
GalileoE1, E5A, E5B (test)
BeidouB1, B2
Positioning Accuracy
Code Differential GNSS positioningHorizontal: 25cm+1ppm RMS

Vertical: 50cm+1ppm RMS

Initialization time: typically<8s
Initialization reliability : typically >99.9%
Real Time Kinematic (RTK)Baseline<30km
Horizontal: 8mm+1ppm RMS

Vertical: 15mm+1ppm RMS
Network RTK
Horizontal: 8mm+0.5ppm RMS
Vertical: 15mm+0.5ppm RMS
Initialization time:   typically<8s
Initialization reliability : typically >99.9%
Static Surveying (Post-processing)Single base<30km
Horizontal:  3mm+0.5ppm RMS
Vertical:     5mm+0.5ppm RMS
Single base>30km
Horizontal:  4mm+0.5ppm RMS
Vertical:     9mm+0.5ppm RMS
Communication & Data Storage
RS-232 (9pin) serial port, supports Host computer mode operation.
Fully integrated and sealed 2.4GHz communication Bluetooth module.
Ethernet protocolHTTP, HTTPS, TCP/IP, UDP, FTP, NTRIP
Support proxy server and routing table.

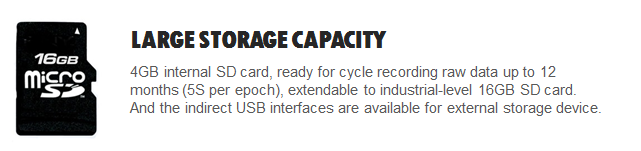

Data StorageInternal Memory 4GB, recording raw data up to 12 months (5s per epoch), extendable to industrial-level 16GB SD card. And the indirect USB interfaces are available for external storage device.
Update Rate1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz positioning output.(depends on installed option, default 1Hz)
Reference OutputCMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0, RTCM3.1
Navigation outputASCⅡ, NMEA-0183, GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, ZDA, GLL, GRS
GBS and the binaryTrimble GSOF

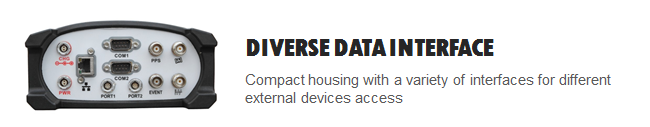

User Interface

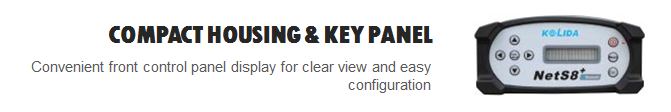

Front panel display with buttons and LED screen.

One RJ45 Ethernet port (10M/100M), supports TCP/IP, HTTP, Ntrip protocol (supported by mainboard BD970).

Two RS232 data ports, transmit static data and differential correction data.

Two multi-functional ports: Port1 supports system debugging and static data download from internal SD card; Port2 supports parameters configuration and connecting meteorological sensor/barograph/inclinometer as well as external storage disk to extend storage capacity.

One external frequency scale port, supports high-precision atomic clock connection.

One PPS output port.

Physical & Environmental
Dimension(LxWxH)202mmx 163mmx 75mm
Weight1.4kg (include all module and battery)
Working Temp.-45℃ to +75℃
Storage Temp.-40℃ to +80℃
Humidity10~95% non-condensing, RH(relative humidity).
Water/ Dust ProofIP67, waterproof for temporary immersion to a depth of 1m, dustproof.
Shock and Vibrationrugged aluminum case + plastic ring seal, designed to survive from a 1m drop onto concrete.
Electrical
External Power Input9-28V DC (with over-voltage protection)
Power consumption4.0W
Internal Battery Life10-15 hours
